Large Panel Bending Support System
The BOGONG large panel bending support system is designed to assist operators when bending heavy or large sheet metal parts. It supports the workpiece during press brake or folding operations, reducing manual lifting effort and helping maintain bending accuracy.
Applications
- Large cabinet panels and enclosure parts
- Stainless steel doors, elevator panels and HVAC sheets
- Heavy sheet bending where manual support is unsafe or inconsistent
- Press brake auxiliary support and semi-automatic bending cells
Features
- Supports large workpieces during bending movement
- Reduces operator fatigue and part surface scratching
- Improves repeatability for long sheet metal panels
- Can be matched with press brake height and workflow
Reference Parameters
| Application | Auxiliary support for large panel bending |
|---|---|
| Workpiece type | Sheet metal panels, cabinet panels, doors, enclosures |
| Drive | Servo, hydraulic or customized support structure depending on project |
| Integration | Press brake or folding machine support |
| Customization | Support length, height, load and motion path |
When a Bending Support System Is Needed
Large sheet metal panels often move during the bending arc. If operators must hold the panel manually, the result may be unsafe and inconsistent. A support system is useful when the part is long, heavy, easily scratched or difficult to keep level during bending.
Selection Guide
| Large thin panels | Focus on smooth support movement and surface protection. |
|---|---|
| Heavy plates | Confirm support load, center of gravity and machine foundation. |
| Existing press brake | Measure machine height, bending axis position and available front space. |
| Frequent product changes | Choose adjustable support length and control parameters. |
RFQ Checklist
Send press brake model, bending length, sheet size, material thickness, maximum part weight, bending angle range, workshop layout and whether the support must follow the bending angle automatically.
Core Selling Points
A BOGONG large panel bending support system assists press brake or folding operations by supporting heavy sheet metal panels during bending. It reduces manual lifting, improves panel stability and can be customized by load, length, height and motion path.
Buying FAQ
Is this a standalone bending machine?
No. It is an auxiliary support system used together with a press brake or folding equipment.
What problem does it solve?
It supports large panels during bending so operators do not need to manually hold heavy sheets through the bending arc.
Can it be matched with existing equipment?
Yes. BOGONG can design the support height, load and motion according to your existing machine and workpiece size.
Does it improve bending accuracy?
It can improve practical bending stability by supporting the panel consistently, especially for long sheets that are difficult for operators to hold level.
100 / 200 / 300 Series Panel Bending Support

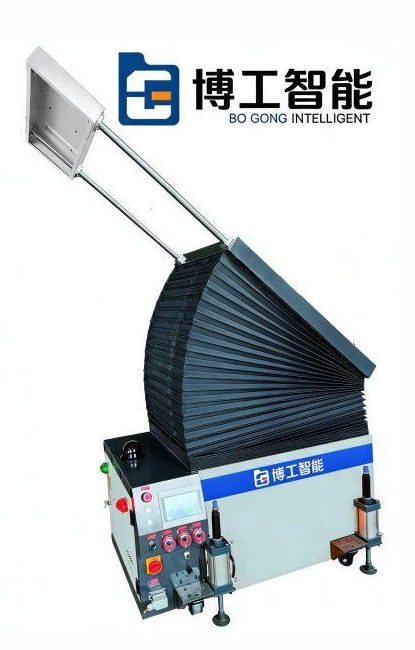

The BOGONG panel bending support range includes models 100, 200 and 300, with corresponding lifting capacities of 100 kg, 200 kg and 300 kg. Each uses a servo motor and reducer to raise the support table through a lifting angle of 0-60 degrees.
Movement Reference and Machine Matching
The support uses a GIVI optical scale as its movement reference. The described installation arrangement works without taking a control signal from the press brake; the optical scale provides the required reference. The support is matched to the bending machine and the workpiece handling requirement.
Model and Lifting Capacity
| Model | Listed lifting capacity |
|---|---|
| 100 | 100 kg |
| 200 | 200 kg |
| 300 | 300 kg |
Support System Specifications
| Parameter | Specification |
|---|---|
| Drive | Servo motor with reducer |
| Lifting angle | 0-60 degrees |
| Standard worktable length | 1500 mm |
| Extended worktable length | 2280 mm |
| Worktable width | 800 mm |
| Worktable height adjustment | 200 mm |
| Overall length | 1500 mm |
| Overall width | 1000 mm |
| Overall height | 850 mm |
| Equipment weight | 650 kg |
For model selection, share the maximum panel size and weight, the press brake model, the bending sequence and the available space in front of the machine.

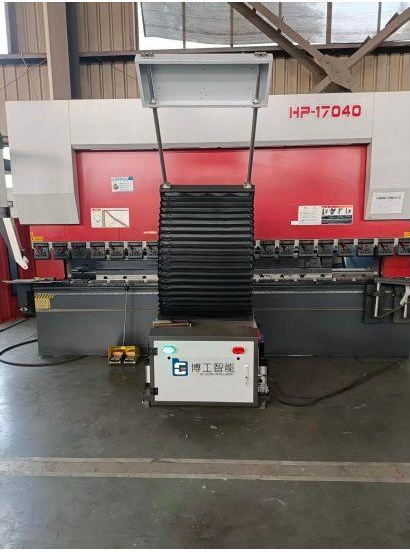

Large Panel Bending Support in Action
Watch three workshop views of large-panel positioning and handling at the press brake.
