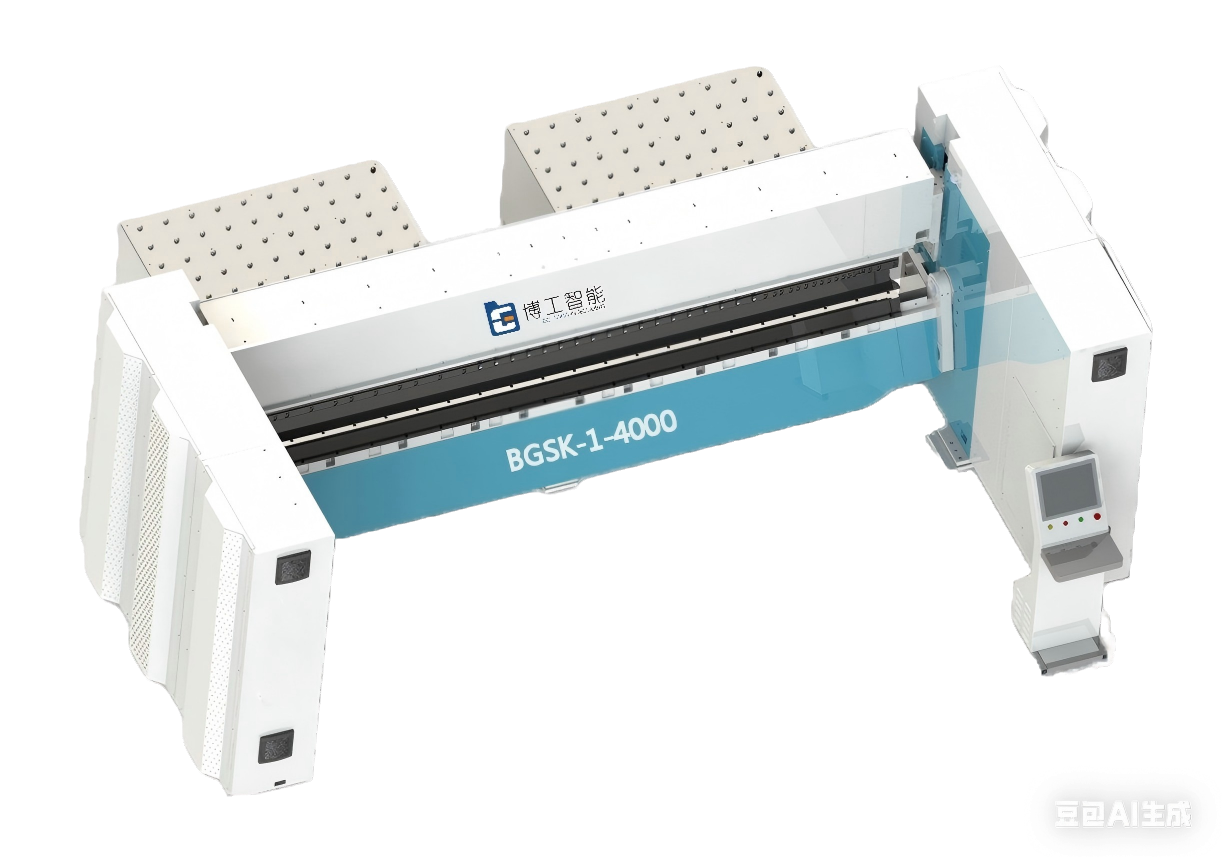

CNC Sheet Metal Folding Machine
The BOGONG CNC sheet metal folding machine is designed for accurate panel bending and box forming in stainless steel, aluminum and cold-rolled sheet production. Compared with traditional manual bending, the CNC folding system improves consistency, reduces operator dependency and supports automated panel manufacturing.
Applications
- Electrical cabinets and control cabinet panels
- Stainless steel kitchen equipment and appliance panels
- Elevator, door, HVAC and enclosure components
- Large-format sheet metal box and panel forming
Features
- Full-servo CNC control for programmable folding
- Forward and reverse folding models available
- Automatic adjustment for different sheet thicknesses
- Positioning accuracy up to approximately +/-0.1 mm in suitable conditions
- Optional suction cup, back gauge, conveyor or gantry robot feeding
Reference Parameters
| Popular models | BGSK-1 / BGSK-2 series, BGPD automatic tool-splicing series |
|---|---|
| Max folding width | 1250 mm, 1600 mm, 2600 mm, 3200 mm, 4000 mm, 6000 mm options |
| Max folding height | Approx. 115-120 mm depending on model |
| Material thickness | Stainless steel up to 1.5 mm, cold plate up to 2.0 mm, aluminum up to 3.0 mm on selected models |
| Folding angle | 0-150 degrees program control on selected models |
| Voltage | 380 V standard, customized options available |
How Buyers Decide Between Folding Machine Models
The most important decision is not only bending length. Buyers should confirm part type, bending direction, flange height, material thickness, handling method and whether the product is mainly a panel, box or general fabrication part. For cabinet and enclosure production, forward and reverse folding can reduce manual flipping and improve repeatability.
Model Selection Guide
| Automatic tool-splicing folding machine | Suitable for smaller panels and flexible width adjustment, commonly used when different product widths appear in one shift. |
|---|---|
| Single-fold CNC folding machine | Suitable when the main process bends in one direction and the buyer needs a practical CNC upgrade. |
| Forward and reverse folding machine | Suitable for cabinet boxes, enclosures and panels that need both positive and negative bends with less manual handling. |
| Large-format folding machine | Suitable for elevator panels, doors, HVAC panels and long cabinet parts where sheet support and positioning are important. |
Part Types That Fit CNC Folding
- Electrical cabinet doors, side panels and enclosure shells
- Stainless steel kitchen equipment panels and appliance covers
- Elevator panels, metal doors and long decorative panels
- HVAC panels, ventilation components and box-type parts
- Products with repeated flange dimensions and batch programs
Not Every Bending Job Should Use a Folding Machine
A press brake may still be better for very thick plate, narrow special profiles, deep formed parts requiring special tooling, or general one-off fabrication. CNC folding is strongest in panel and box production where operators need stable support, fast programming and repeatable dimensions.
RFQ Checklist
Please send part drawings, maximum bending length, sheet thickness, material type, maximum flange height, minimum internal box size, required bending angle, production volume, loading method and factory voltage. If the part requires forward and reverse bending, mark the bending sequence on the drawing.
Core Selling Points
A BOGONG CNC sheet metal folding machine is used to form cabinet panels, enclosures, doors and box-type sheet metal parts. It is suitable for stainless steel, aluminum and cold-rolled sheet. Buyers choose single-fold or forward/reverse folding models according to bending direction, part size, material thickness and automation requirement.
Buying FAQ
Can it replace a press brake?
For panel and box-type parts, CNC folding can reduce flipping work and improve formed edge consistency. For thick, narrow or special tooling parts, a press brake may still be needed.
What is the difference between single-fold and forward/reverse-fold models?
Single-fold models bend in one main direction. Forward/reverse-fold models can bend both directions with less manual intervention, which is useful for closed panels and complex boxes.
Can the back gauge table be customized?
Yes. BOGONG can customize the back gauge, feeding platform and automation layout according to part size and process flow.
What information determines the machine length?
The maximum bending width and product family determine the machine length. It is better to select based on common production parts, with allowance for future products.
Can CNC folding reduce skilled labor dependency?
Yes. Programmed folding, back gauge positioning and sheet support reduce the influence of operator experience, especially for repeated cabinet and enclosure parts.
