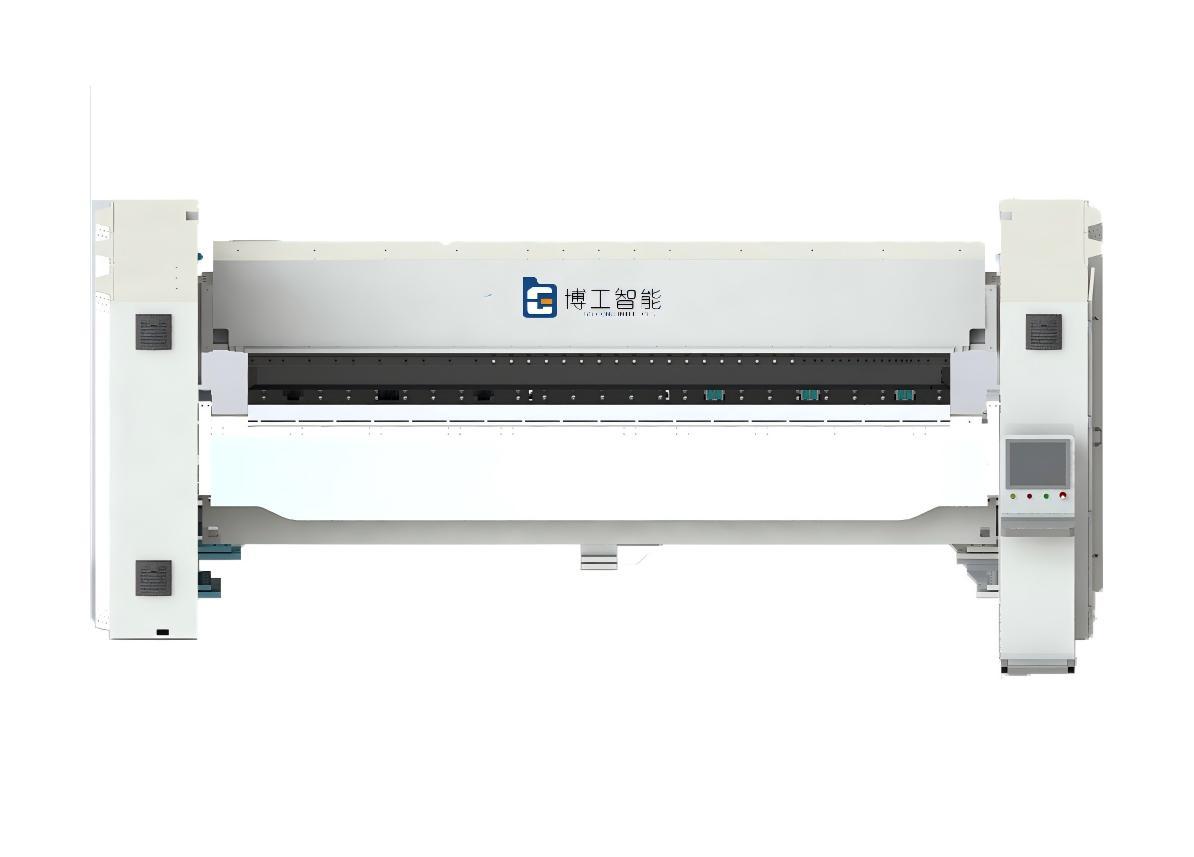

BGSK-1 Fully Electric CNC Folding Machine – Single Fold
The BGSK-1 fully electric CNC folding machine uses a servo CNC system for single-direction programmable folding. It is suitable for panel products where bending angles and sheet thickness need automatic adjustment while keeping machine operation straightforward.
Core Product Value
A full-servo single-fold machine for factories upgrading from manual or semi-automatic panel bending.
Main Applications
- Electrical cabinet panels and control boxes
- Stainless steel kitchen and appliance panels
- HVAC panels, doors and enclosure shells
- Long panel production with repeatable bend programs
Main Technical Parameters
| Models | BGSK-1-2600 / 3200 / 4000 / 6000 |
|---|---|
| Fastest folding speed | 6 s / bend |
| Maximum folding width | 2600 / 3200 / 4000 / 6000 mm |
| Maximum folding height | 120 mm |
| Maximum thickness | Stainless steel 1.5 mm; cold plate 2.0 mm; aluminum 3.0 mm |
| Minimum inner size for four-side forming | 300 x 300 mm |
| Axes | 6 axes |
| Rated voltage | 380 V |
| Motor power | 12 / 15 / 20 / 30 kW |
| Feeding speed | 1 m/s, 1 m/s, 0.8 m/s, 0.5 m/s by model |
| Approx. weight | 4.5 / 6.5 / 7.5 / 12 T |
Note: Parameters are catalog references. Final configuration should be confirmed according to material, part size, process target and quotation documents.
Application Scenario Q&A
What is the main difference from BGSK-2?
BGSK-1 is for single-direction folding, while BGSK-2 supports forward and reverse folding.
Can folding angle be programmed?
Yes, workpieces can be folded within the catalog angle range through CNC programming.
What should be confirmed before purchase?
Confirm maximum panel size, sheet thickness, bend angle, feeding method and required automation level.
RFQ Information to Prepare
- Material and grade
- Thickness range
- Maximum and minimum workpiece size
- Target finish or process requirement
- Daily production target
- Factory voltage and automation requirement
