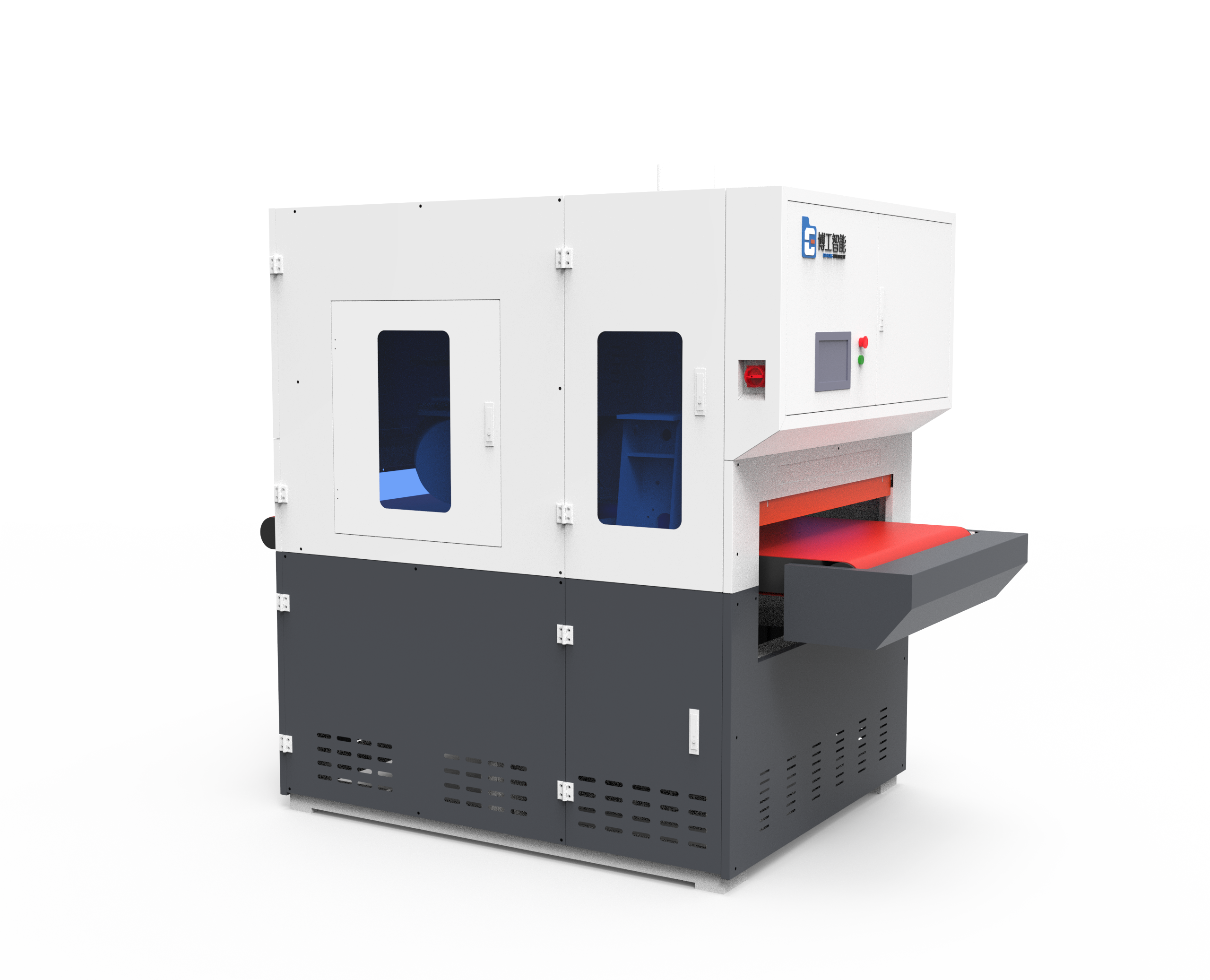

BG-L/S-M/VSA-BR Brush Deburring and Edge Rounding Machine
The BR series combines abrasive-belt processing with brush deburring for sheet metal parts that need burr removal and more consistent edge treatment. It is suitable for factories processing laser-cut stainless steel, carbon steel and aluminum parts before coating or assembly.
Core Product Value
A practical configuration when buyers need both sanding and brush-based edge treatment in one machine.
Main Applications
- Laser cutting service centers
- Sheet metal cabinet and enclosure parts
- Parts requiring safer handling edges
- Powder coating preparation
Main Technical Parameters
| Model | BG-L/S-M/VSA-BR |
|---|---|
| Workbench width | 800 / 1000 mm |
| Machining thickness | 0.5-110 mm |
| Feeding speed | 1-8 m/min, frequency control |
| Belt speed | 2.2-11 m/s, frequency control |
| Brush speed | 9-18 r/s, frequency control |
| Orbital speed | 9-18 r/s, frequency control |
| Rated voltage | AC 380 V / 50 Hz |
| Power, magnetic table | 14.5 / 20 kW |
| Power, vacuum table | 25.5 / 35 kW |
| Air pressure | 0.6-0.8 MPa |
| Weight | 2000 / 2200 kg |
| Overall dimensions | 2400 x 1280 x 2400 mm / 2600 x 1480 x 2400 mm |
Note: Parameters are catalog references. Final configuration should be confirmed according to material, part size, process target and quotation documents.
Application Scenario Q&A
Why choose BR instead of BB?
Choose BR when brush deburring and edge treatment are needed in addition to abrasive-belt sanding.
Is it useful before powder coating?
Yes, brush edge treatment can improve handling safety and coating preparation.
What samples should be sent?
Send top and bottom photos of burrs, hole edges and required final edge condition.
RFQ Information to Prepare
- Material and grade
- Thickness range
- Maximum and minimum workpiece size
- Target finish or process requirement
- Daily production target
- Factory voltage and automation requirement
