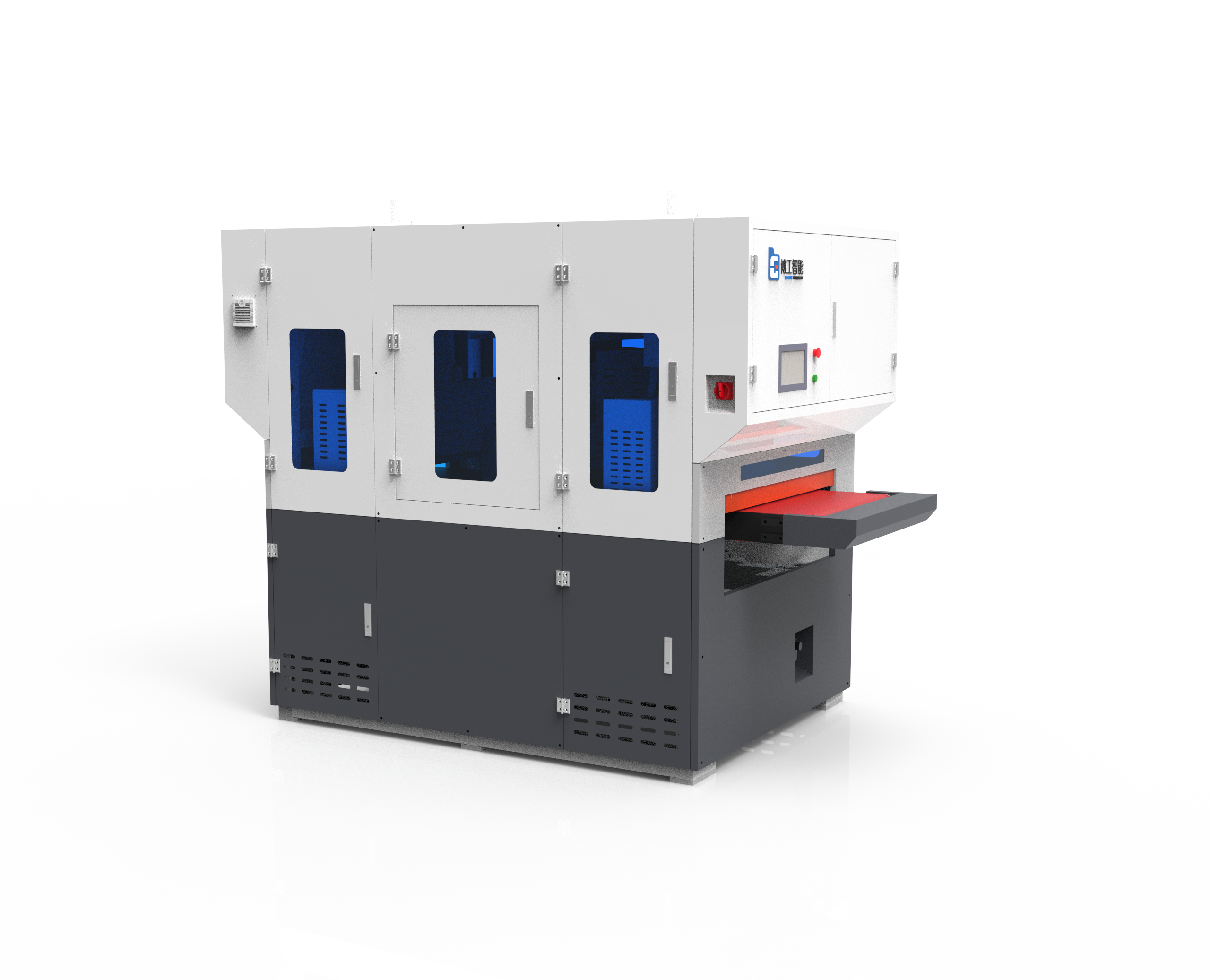

BG-L/S-M/VSA-BRB / BRP Sheet Metal Deburring Machine
The BRB / BRP configuration is designed for stronger deburring and edge finishing requirements on wider sheet metal parts. It is used where burr removal, brush processing and stable surface preparation must be combined for higher-volume fabrication.
Core Product Value
Suitable for buyers who need stronger modular deburring capability and wider table options than basic configurations.
Main Applications
- High-volume laser-cut sheet metal parts
- Electrical cabinets and equipment panels
- Stainless steel and aluminum component finishing
- Coating-ready edge and surface preparation
Main Technical Parameters
| Model | BG-L/S-M/VSA-BRB / BRP |
|---|---|
| Workbench width | 800 / 1000 / 1300 mm |
| Machining thickness | 0.5-110 mm |
| Feeding speed | 1-8 m/min, frequency control |
| Belt speed | 2.2-11 m/s, frequency control |
| Brush speed | 9-18 r/s, frequency control |
| Orbital speed | 9-18 r/s, frequency control |
| Rated voltage | AC 380 V / 50 Hz |
| Power, magnetic table | 22.5 / 31 / 42 kW |
| Power, vacuum table | 38 / 50 / 62 kW |
| Air pressure | 0.6-0.8 MPa |
| Weight | 2700 / 3200 / 3800 kg |
| Overall dimensions | 2900 x 1280 x 2400 mm / 3100 x 1480 x 2400 mm / 3100 x 1780 x 2400 mm |
Note: Parameters are catalog references. Final configuration should be confirmed according to material, part size, process target and quotation documents.
Application Scenario Q&A
What makes this configuration suitable for production use?
It provides wider table options and stronger combined sanding/brush processing for repeated sheet metal parts.
Can it process mixed materials?
It can be configured for stainless steel, carbon steel, aluminum and galvanized sheet, but abrasive and dust-control choices should match the material.
What determines 800, 1000 or 1300 mm width?
Select width by the largest common part size and production flow, not only the largest possible part.
RFQ Information to Prepare
- Material and grade
- Thickness range
- Maximum and minimum workpiece size
- Target finish or process requirement
- Daily production target
- Factory voltage and automation requirement
